Wed, Aug 9, 2017 3:11 PM


vsz-connected APs are not broadcasting SSID

Hi all,

Recently we've implemented a public WiFi network which utilizes smart-meshing for a total of 4 out of 8 APs. Today we drove back to the site after all the installation work has been done last week. We noticed that a few APs don't seem to be broadcasting. This is also visible in the in the vSZ, although, not that clearly.

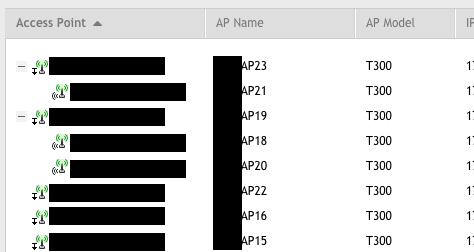

Below is the partial meshing setup for the network. AP17 is meshed with AP13 and is working absolutely fine, but AP21, AP19, AP20 and AP18 are not broadcasting.

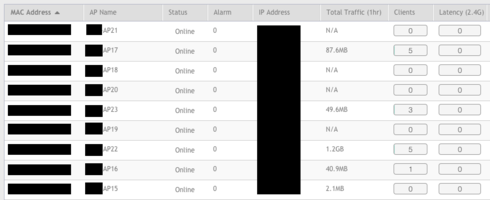

In the below screenshot the Total Traffic shows N/A. This already indicates to me the AP is not broadcasting. Also there is no channel on 2.4GHz and when checking the general AP details, the WLAN list is empty on the aforementioned APs.

What I've tried:
- made sure that all APs are in the same zone & AP Group (it's all in the default zone)
- Tested with an extra 'clean' AP in the office.
- rebooted the AP's that have problems

I have no other ideas at this point, because the configuration is rocksolid. Any idea what is causing this issue?


19 Messages


390 Points

3 years ago

An update on this. I've found the issue. Some of the AP's had their radio (in the individual AP config) disabled. How this happened is beyond me, since the the zone and domain is a fresh config and so are all the AP's that were added to this zone (and same AP group).
Brand User

Former Employee


2.6K Messages


44.8K Points

Thanks Axel.

53 Messages


1K Points

Ran into a similar issue with an AP I was using to test.  Unless it was in the default group its radio's would be off and I'd have to manually turn them on.  Going to test another one and see if the same thing happens.  Wonder if Ruckus knows the root cause.
