802.1X Virtual Smart Zone using NPS with Error Code:66

We have our 802.1x RADIUS Server configured to use an NPS Server.

When we test the RADIUS Server from the Smart Zone Controller or via an 802.11x enabled SSID it fails.

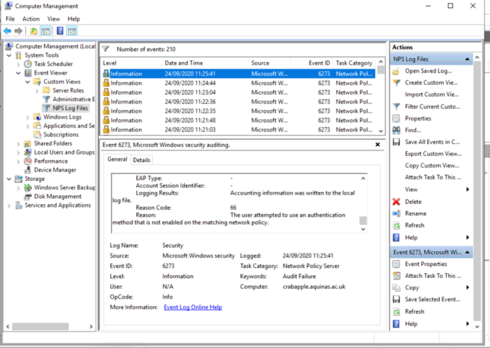

In the logs on the NPS Server we see

Error Code: 66
Reason Code: The user attempted to use an authentication method that is not enabled on the matching network policy


Responses

Employee

 •

633 Messages

 •

10.3K Points

2 months ago

Hi Stephen,

Could you also attach the screenshots from the NPS policy settings.

Seems auth methods are not correctly configured in the NPS policy.

Also refer below article which explains NPS configuration settings for 802.1X authentication.

https://support.ruckuswireless.com/articles/000002109

Note: Document talks about ZoneDirector but NPS side configurations are mostly same.

Regards,
Syamantak Omer

Regards,

Syamantak Omer

6 Messages

 •

150 Points

Unable to access that document you shared.

Employee

 •

633 Messages

 •

10.3K Points

Hi Stephen,

I have checked and I am able to open above link.

It is a premium content, so you may not be able to see it, if you don't have premium support purchased.

Regards,
Syamantak Omer

Regards,

Syamantak Omer

6 Messages

 •

150 Points

2 months ago

Thanks for the reply. I have followed the setup gudie for NPS 802.1x for VLAN assignment.

NPS Settings are:










*Same error seen whichever way we ave the EAP Types





*here we wish to return the VLAN 40 tag to SmartZone



Employee

 •

633 Messages

 •

10.3K Points

Hi Stephen,

Could you select EAP Types and make sure correct certificate is mapped?



Also enable "Wireless Other" in NAS Port type.



Post making above changes if you are still facing issues, please open a support case and they will assist you.

Regards,
Syamantak Omer

Regards,

Syamantak Omer

6 Messages

 •

150 Points

PEAP Cert Details:




Changes applied:




Same Issue on NPS:


Employee

 •

633 Messages

 •

10.3K Points

Please open a support case from the below link and support team will help you to check the issue further.

https://support.ruckuswireless.com/cases/new

Regards,
Syamantak Omer

Regards,

Syamantak Omer

6 Messages

 •

150 Points

2 months ago

Error was fixed by changing the Condition on the Connection Request Policy to Day and Time Restrictions (allow all)

Employee

 •

633 Messages

 •

10.3K Points

Good to know that issue has been fixed!

Regards,
Syamantak Omer

Regards,

Syamantak Omer
