icx 7150 routing

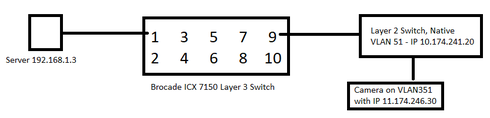

Needing a little help here please.  We have an environment with no router, but we do have a layer 3 switch.  Please refer to the diagram; we have a server with IP address 192.168.1.3 connected to Ethernet port 1 of the Brocade Ruckus ICX 7150 switch.  We have a fiber link on port 9 that goes out to a layer 2 switch.  On port 9 we have virtual interfaces for vlan 51 at 10.174.241.99 and vlan 351 at 11.174.246.99.  From the Brocade Ruckus we can ping the Camera at 11.174.246.30, so we are routing traffic as intended from the Brocade through the layer 2 switch (that has tagging) to the camera at 11.174.246.30.  What we need to do is have the server connect from its IP address of 192.168.1.3 to the camera at 11.174.246.30.  What configuration method would work best to achieve this goal?

Responses

208 Messages

 •

3.7K Points

9 months ago

Good Afternoon:

It is hard to visualize your setup because the masks weren't mentioned, but the 7150 can serve teh same function as a router.  Presumably, you create the router-interface ve interfaces??? and on int ve 51 set an IP within the subnet, and on int ve 351 set an IP within the subnet.

Then presumably, you carried port 9 to the Layer-2 switch, but I presume you used a media converter??? because there are no 7150 units with SFP or SFP+ slots to connect a fiber traceiver from port 1/1/9.  On the 7150, it is common place to place a fiber tranceiver into 1/3/x the way they are numbered.

None the less, the port you are sending to the Layer-2 switch needs to carry both VLANS using 802.1q, so under each VLAN you would set that as TAGGED..


vlan 52 name something by port
tagged e 1/1/9
router-interface ve 52
!
vlan 351 name something-different by port
tagged e 1/1/9
router interface ve 251
!

int ve 52
port-name default gateway for 10.x network
ip add 10.x.x.x/yy
!

int ve 351
port-name default gateway for 11.x network
ip add 11.x.x.x/yy
!

On your layer-2 switch, I am confused that you said, "NATIVE" because that usually refers to an untagged interface that is also tagged in another VLAN.  In ICX terminology, this used to be referred to as a dual-mode port, which regardless of terminology  carries untagged ethernet frames into a particular vlan.  That said any particular interface can be untagged into only one vlan given the constraint the switch needs to know what VLAN to sort untagged frames it receives into (as well as transmit).


***

The reason your ping is likley working is that most likely your ICX 7150 is sourcing the ping from 11.x.x.x, which is on a directly-connected network, but this is just speculation being I cannot see your environment.

Regardless, to make this work, you will need some routing to occur between your 192.168.1.0/24 (presumably I am guessing at the mask) network.


Perhaps:

vlan 192 name servers by port
untagged ethe 1/1/1
router-interface ve 192
!

int ve 192
port-name Default gateway for 192.168.1 network used by servers.
ip add 192.168.1.1/24
!

***

This assumes the server is directly connected to interface 1 on the 7150 and that you have the default-gateway defined on the server as 192.168.1.1, that the mask is 255.255.255.0, that the server sends traffic without an 802.1q tag on the frame... that your network is not more complex than diagramed.

***

Lastly, may I suggest for private use to stick with the RFC1918 IPs.  11's are Internet routable.

You want to variably subset your private network subnets from these larger subnets:

192.168.0.0/16
172.16.0.0/12
10.0.0.0/8


Hope this helps.

14 Messages

 •

206 Points

Very Helpful NetWizz!  You are so correct, we are actually in port 1/3/1 for the fiber link.  I was trying to simplify things and I made it more confusing.  Thank you!  We are running subnet mask of 255.255.255.0 on all subnets.   You are also correct on our ve settings:

vlan 51
tagged ethernet 1/3/1
router-interface ve 51
int ve 51
ip address 10.174.241.99/24

vlan 351
tagged ethernet 1/3/1
router-interface ve 351
int ve 351
ip address 11.174.246.99/24

The vlan of the layer 2 switch is 51 for its subnet address of 10.174.241.20.

The server only has ip of 192.168.1.3 and mask of 255.255.255.0, we left the gateway empty.

We are adding this now:
vlan 192
untagged ethe 1/1/1
router-interface ve 192
!
int ve 192
ip add 192.168.1.1/24

We will set the server gateway to 192.168.1.1 and do some testing and get back to you.  Thank you so much!!!  You are awesome

7 Messages

 •

200 Points

9 months ago

Does the server already have an existing gateway configured?
It may need a static route put in to point at the network the camera is on.

if the server doesn't have a gateway configured, Create another VE on the L3 switch for that vlan.


14 Messages

 •

206 Points

Hi Adam.  The server did not have a gateway, but with NetWizz's input we added a ve on port 1/1/1 with ip 192.168.1.1, and now have added the gateway of 192.168.1.1 to the server.  We can ping the ve port of 192.168.1.1 now, but if we try to ping the tagged ve's on 1/3/1 we fail in transit.

208 Messages

 •

3.7K Points

9 months ago

Nope, this is a misnomer.

No static route should be needed giving the diagram above because there is only one (1) layer-3 device doing any routing, and this device would automatically add to its routing table the directly-connected routes for any IPs assigned to its interfaces - typically VRIs (Virtual Router Interfaces), which are your "interface ve xxx".  Other vendors call these SVIs (Software Virtual Interfaces), and those are typically "interface vlan xxx."  It is the same concept though.

Regardless, as a general rule of thumb once you place an IP address with its Mask on an interface, that entire subnet will show up in the routing-table as a directly-connected route meaning that layer-3 device owns that subnet.

A static-route would be to tell another layer-3 device that doesn't have that subnet or know how to get to that subnet to get to that subnet via a next-hop IP or via one of its interfaces.

In this case with this diagram, the routing table will look something like this if Op assigns 192.168.1.1/24 to ve 192, and places at least one actual interface that is UP into that VLAN, so the VE changes its state to up/up (required to get the route inserted):

[email protected]#sh ip route
Total number of IP routes: 1
Type Codes - B:BGP D:Connected O:OSPF R:RIP S:Static; Cost - Dist/Metric
BGP  Codes - i:iBGP e:eBGP
OSPF Codes - i:Inter Area 1:External Type 1 2:External Type 2
        Destination        Gateway         Port          Cost          Type Uptime
1       192.168.1.0/24  DIRECT          ve 192         0/0           D    1d6h
[email protected]#

There would be other  routing table entries for subnets directly-connected on ve 52, and ve 351, too.


****

If you are referring to the server needing a static route, while that's true, it will already have a default route, which is used by the OS to get to any network which is not in the 192.168.1.x network the server is assigned.  Any other IP would cause the server to forward those packets to its default-gateway, which if the config tweaks I suggested are made would be 192.168.1.1, and the server would find that being its subnet 192.168.1.3/24 is within the same subnet as the default-gateway.  That is to say the server is on the same layer-2 subnet as the default-gateway.  In reality, it is just plugged into interface 1/1/1

In Windows, you can do a c:\>print route if you really want from a cmd prompt.

You would be looking for something like this
print route
Unable to initialize device PRN

C:\Users\Netwizz>route print
===========================================================================
Interface List

===========================================================================
IPv4 Route Table
===========================================================================
Active Routes:
Network Destination        Netmask          Gateway       Interface  Metric
          0.0.0.0          0.0.0.0       192.168.1.1      192.168.1.3   281

14 Messages

 •

206 Points

This is what our sh ip route looks like;

01     10.174.241.0/24    DIRECT          ve 51         0/0           D    1h46m

02      11.174.246.0/24    DIRECT          ve 351        0/0           D    1h46m

03      192.168.1.0/24     DIRECT          ve 192        0/0           D    12m52s

04      192.168.45.0/24    DIRECT          e mgmt1       0/0           D    2h2m

7 Messages

 •

200 Points

just to clarify, I mentioned the static route in the case that the server was already using a different router.

I know he said he didn't have one, but sometimes things are omitted.

14 Messages

 •

206 Points

All good, no router here.  I know it's confusing.  I'm trying.  If we had a router, we'd be done last week.  lol

14 Messages

 •

206 Points

With all that is added, from the server we can ping 192.168.1.1 on the ve.  From the Layer 3 switch Brocade switch however, we cannot ping the server at 192.168.1.3.  Any ideas?

Switch#ping 192.168.1.3
Sending 1, 16-byte ICMP Echo to 192.168.1.3, timeout 5000 msec, TTL 64
Type Control-c to abort
Request timed out.
No reply from remote host.

It's most strange as the server shows up in arp:

Switch#sh arp
Total number of ARP entries: 2
Entries in default routing instance:
No.   IP Address       MAC Address    Type     Age Port               Status
1     10.174.241.20    000b.abec.9d67 Dynamic  0    1/3/1             Valid
2     192.168.1.3      54b2.0382.fd5e Dynamic  2    1/1/1             Valid


7 Messages

 •

200 Points

Duplicate IP somewhere?
you don't have anything else configured as 192.168.1.1 do you?
it could be responding to the pings when you think you are pinging the VE.
